How to Set Up Shipping Assistant in Kustom Checkout

Overview

Kustom Shipping Assistant (KSA) enables real-time delivery options to be displayed directly within your checkout. It connects your Kustom Checkout integration with either a partner-managed Transport Management System (TMS) or a direct Shipping API implementation.

The instructions in this guide apply to both Production and the Playground (testing) environment.
We recommend setting up and verifying your integration in Playground first before activating it in production.

If you prefer to build your own shipping backend, see the Shipping API Integration Guide for a deeper dive into direct integration. You will still need to follow this guide to activate KSA.

Step 1 – Preparation

Before you start, make sure you have everything you need.

Kustom Checkout Integration

KSA works as an extension of Kustom Checkout. Ensure your Checkout integration is live before continuing.

Digital Poducts

The Shipping Assistant is only used for physical deliveries.

  • If there are no shippable items, ensure all order_lines have the type digital.

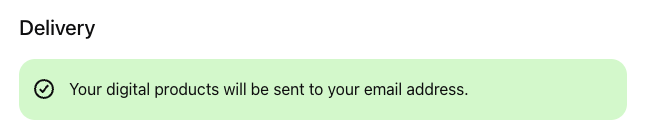

  • When there are only digital items, KSA will display the following:
Digital delivery

Optional Fallback Shipping Options

We recommend using static shipping_options as a fallback. These are optional and are only shown if:

  • Your KSA configuration exists, and
  • Your Shipping API or TMS fails to respond.

In that case, the fallback options ensure the purchase can still be completed.

If you choose to use fallback shipping options, you can configure them in Step 4.

If you want to rely only on static shipping (without KSA), see this page for a more detailed walkthrough.

Step 2 – Get Your Shipping Credentials

To activate Kustom Shipping Assistant, you’ll need to provide your shipping credentials, which include:

  • TMS (if you are using a partner) or Endpoint (if you are not using a partner and want to integrate towards Shipping API directly).
  • Identifier – unique username.
  • Key – password.
  • Markets – the markets that should be configured.

How you obtain these credentials depends on your setup:

  • If you use a TMS partner (e.g., Unifaun, Consignor, nShift), they will provide these credentials to you. You can find more information on the TMS partners page.
  • If you integrate the Shipping API directly, you generate and manage your own credentials.

Step 3 – Activate KSA in the Kustom Portal

Once your credentials are ready, you must configure and activate KSA on your Merchant ID (MID) in the Kustom portal.

Follow this guide for step-by-step instructions on how to:

  1. Create a profile and add your credentials.
  2. Add your market(s).

Step 4 – Trigger KSA in the Checkout Payload

For KSA to be used, either of these conditions must hold true in the create checkout order call:

  1. allow_separate_shipping_address is set to true or
  2. Fallback shipping_options are present

If either condition is true and there is a KSA configuration on the MID, KSA will be enabled.

Option 1: Enabling Separate Shipping Address

"options": {
  "allow_separate_shipping_address": true
}

Option 2: Providing Fallback Shipping Options

"shipping_options": [
  {
    "id": "express_priority",
    "name": "Home Delivery",
    "price": 0,
    "tax_amount": 0,
    "tax_rate": 0
  }
]

💡 Recommendation:
Set allow_separate_shipping_address to true and provide fallback shipping_options.
This ensures:

  • The shipping section is shown.
  • KSA can dynamically provide options when available.
  • You have a graceful fallback if your TMS or Shipping API is unavailable.

Step 5 – Verify Your Setup

Once KSA is configured in the portal and triggered in your Checkout payload, you should verify that everything works as expected.

  1. Use Playground first

    • Create a test order in the Playground environment with at least one physical item.

  2. Open the Checkout and review shipping options

    • Confirm that the shipping section is visible.
    • Verify that KSA loads and displays dynamic shipping options from your TMS or Shipping API.

  3. Confirm fallback behavior (optional)

    • If you have configured fallback shipping_options, simulate an unavailable TMS/Shipping API and check that the static options are shown instead.

If everything looks good in Playground, you can repeat the same configuration for your Production MID.

Support

Need help?
Contact our support team at support@kustom.co.
